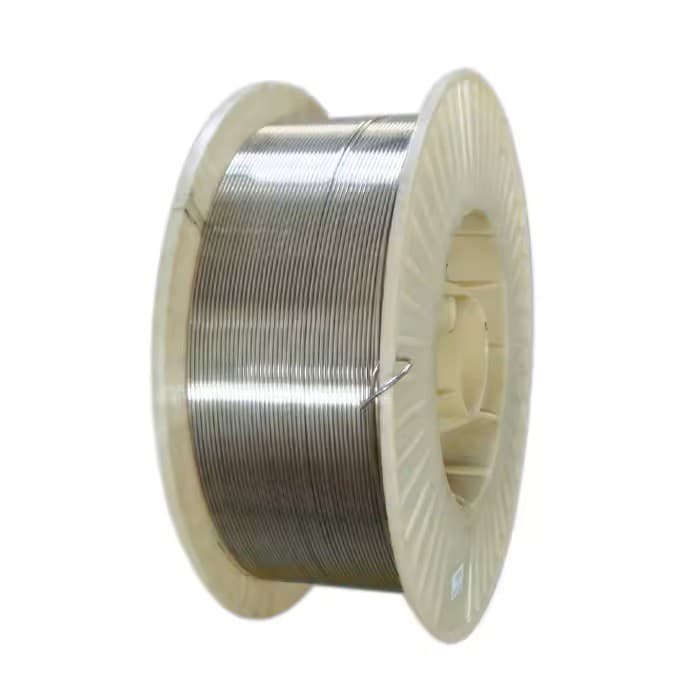

Monel 400 Spray Wire
Ni-Cu Monel 400 wire to UNS N04400 and wire standard ASTM B164; CQ can confirm seawater, acid-service, pump and valve requirements against each coating application.
Published Ni-Cu composition with Fe and Mn limits
ASTM B164 wire standard and UNS N04400 identity
Published wire diameter range of 0.05-8 mm
Product description
Monel 400 is presented with minimum 63% Ni, 28-34% Cu, maximum 2.5% Fe and maximum 2.0% Mn, together with UNS N04400. ASTM B164 is identified as the wire standard; ASTM B127 is a related standard for other product forms. The published wire diameter range is 0.05-8 mm.
Monel 400 alloy-level applications include seawater heat exchangers and evaporators, power-station water piping, acid environments, marine equipment, propeller shafts, pumps and valves. CQ can confirm operating process, coating hardness or bond strength, surface preparation and package weight against the requested application.
CQ can align Monel 400 material requirements for seawater equipment, acid service, pumps and valves, with spray-coating performance confirmed against the requested application.
Technical specifications
- Monel 400 composition
- Ni >=63%; Cu 28-34%; Fe <=2.5%; Mn <=2.0%
- Material identity
- UNS N04400
- Wire and other-form standards
- ASTM B164 (wire); ASTM B127 (other product forms)
- Wire diameter range
- 0.05-8 mm
- Process and coating data
- Đang cập nhật / Updating
- Packaging
- Đang cập nhật / Updating
Typical applications
Seawater equipment
For seawater-exposed equipment requirements.
Acid service
For acid-service and corrosive environments.
Pumps and valves
For pump, valve and related component material needs.
Marine equipment
Alloy-level context for marine equipment.
