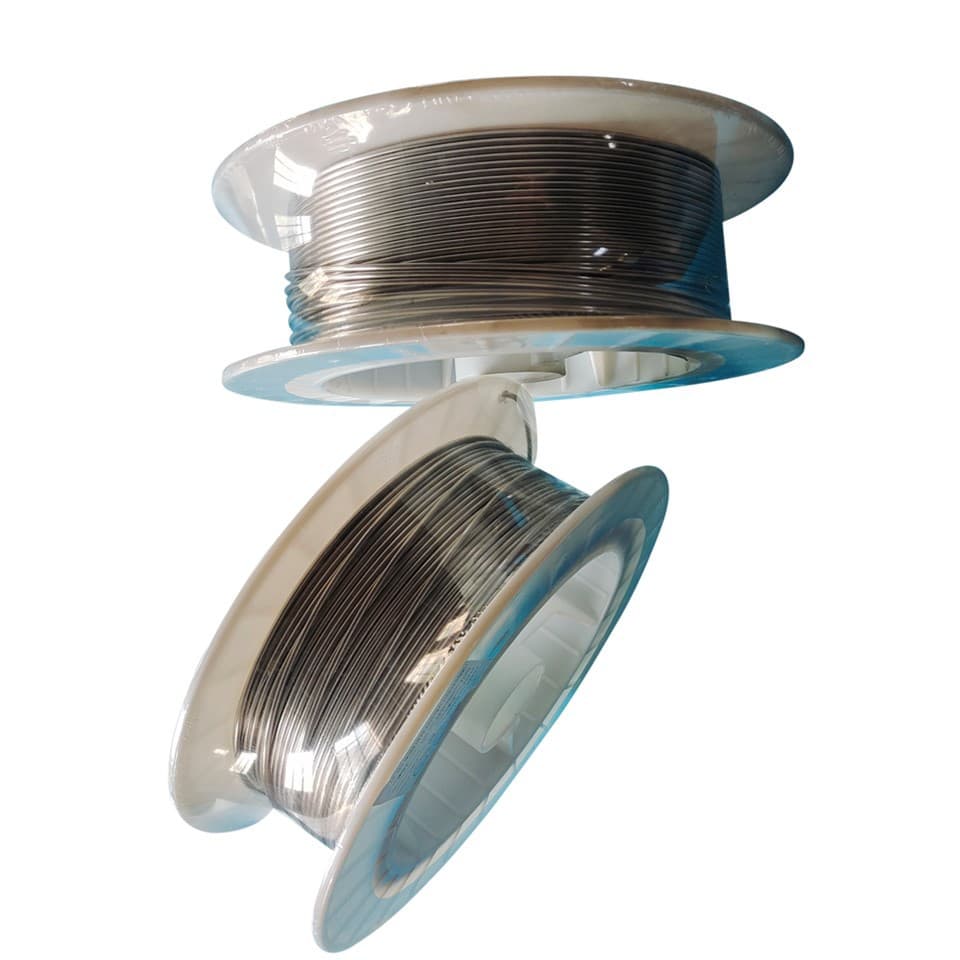

Zn85Al15 Spray Wire
Zn85Al15 Arc Spray wire for atmospheric steel protection with nominal Zn 85%/Al 15%; the conflicting detailed assay is not used.
Clear nominal identity of Zn 85% / Al 15%
Published 2.0 or 3.0 mm wire at 15 kg/spool
Arc Spray protection of steel against atmospheric corrosion
Product description
The product title, identity and body define Zn85Al15, nominally 85% Zn and 15% Al. It is used in Arc Spray protection of atmospheric steel, combining zinc sacrificial or cathodic protection with the surface stability contributed by aluminium. Published supply data are 2.0 and 3.0 mm wire at 15 kg per spool.
The detailed assay table repeats pure-zinc data and contains no aluminium, so it cannot represent Zn85Al15. This record excludes that inconsistent assay and does not reuse pure-zinc melting point, density or tensile values as alloy properties. The nominal composition is based only on the product designation and the consistent identity stated in the page body.
Provides atmospheric corrosion protection for steel structures by combining zinc sacrificial protection with the surface stability contributed by aluminium in an Arc Spray deposit.
Technical specifications
- Designation-based composition
- Zn 85% / Al 15%
- Wire diameter
- 2.0 / 3.0 mm
- Packaging
- 15 kg/spool
- Process
- Arc Spray
- Source-data note
- Detailed pure-zinc assay is inconsistent and excluded
