Mitutoyo Height Gage
Mitutoyo height gages determine height, distance and position and perform scribing on surface or granite plates.
Measures large workpieces
Three lines: digimatic, vernier and dial
Supports measuring and scribing on surface plates
Product description
The height gage is a precision measuring tool used to determine height, distance and position, and to perform scribing operations on a surface plate or granite surface plate. With high accuracy and the ability to measure large workpieces, it is widely applied in mechanical manufacturing, CNC machining, mould and die work, and product quality control.

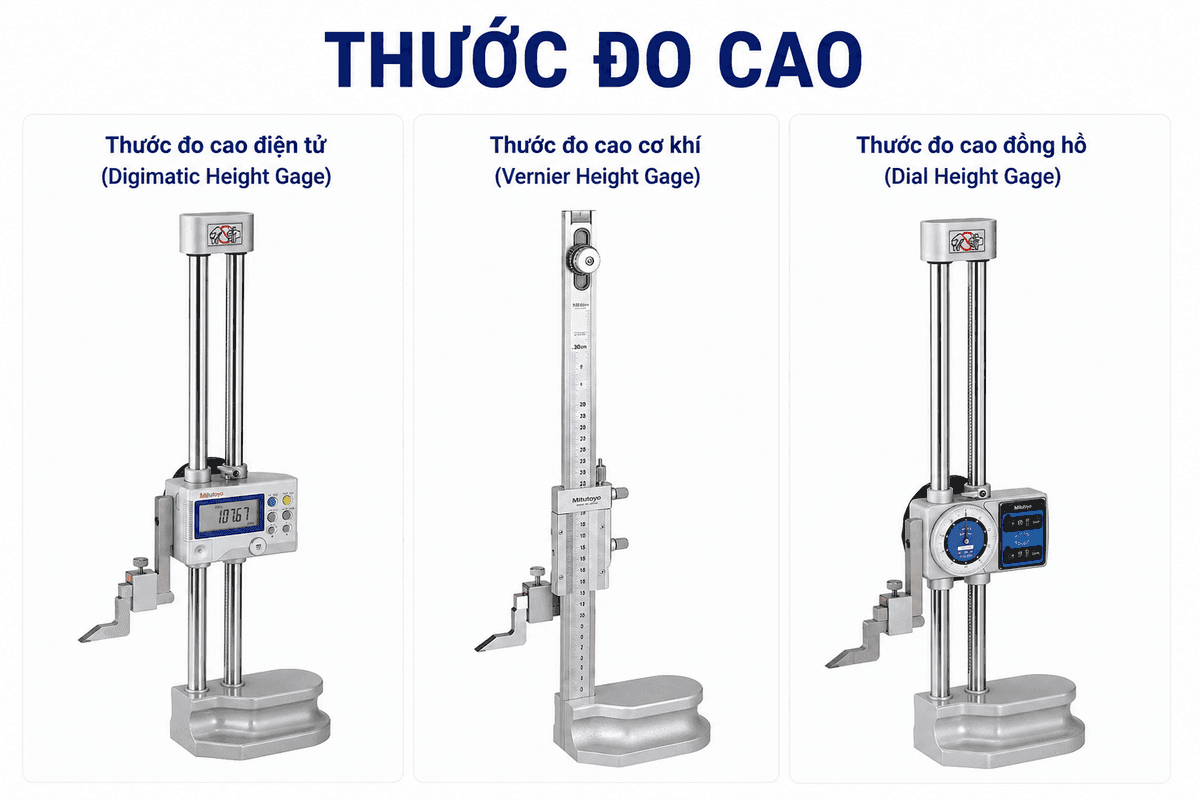

Based on the measurement display method, height gages are divided into three main product lines: the Digimatic Height Gage, the Vernier Height Gage and the Dial Height Gage. The Digimatic Height Gage offers common ranges of 0-200mm, 0-300mm, 0-600mm and 0-1000mm, with fast readings on an LCD screen. The Vernier Height Gage offers ranges of 0-200mm, 0-300mm, 0-450mm, 0-600mm and 0-1000mm. The Dial Height Gage is equipped with a needle dial face and offers common ranges of 0-300mm, 0-450mm, 0-600mm and 0-1000mm.
Measuring height and position and scribing large parts in mechanical manufacturing, CNC machining, mould and die work, and quality control.
Technical specifications
- Types
- Điện tử (Digimatic) / Cơ khí (Vernier) / Đồng hồ (Dial)
- Measuring range
- 0-200 mm / 0-300 mm / 0-600 mm / 0-1000 mm
- Measurements
- Chiều cao, khoảng cách, vị trí, lấy dấu
- Application
- Cơ khí, CNC, khuôn mẫu, QC
- Brand
- Mitutoyo
Typical applications
Height measurement
Measures part height on a surface plate.
Step height
Checks step height and level differences.
Layout marking
Supports layout marking on machined parts.
Data capture
Digital models can send readings to a data collector.
